NASA JPL Subcontracts Wizard

About

Full presentation available on Behance.

Subcontracts Wizard is an Enterprise application for the Acquisition Division to manage all active and archived subcontracts used to document purchasing transactions, from office supplies to flight hardware.

Awards

JPL Team Award

Impact

This redesign has since greatly improved the work experience and efficiency for subcontracts managers. Close to 75% have reported high levels of satisfaction.

Company

NASA Jet Propulsion Laboratory

Timeframe

March 2020 - April 2021

Tools

Figma, GitHub, Lyssna

Team

Emma Kalayjian, Serena Villacorta, Rita Nassif, Vahe Kilamyan

Problem

The former design has existed for decades, which means both the design and technical infrastructure needed to be upgraded.

The challenge was to design an interface that:

• Complies with Accessibility standards (Section 508, WCAG 2.1 AA)

• Implements JPL Design Lab's Design & Branding Guidelines

• Offers a clean, concise information architecture that reduces cognitive load.

Questions

What is the optimal information architecture for users to access all subcontract information with minimal number of clicks?

How can both the front-end and back-end be modernized to be up to date without alienating our existing user base?

My Contributions

• User research

• Color theory

• Branding

• Information architecture

• Interaction design

• Usability testing

• UAT

• A/B testing

• Heatmap testing

• Front-end development

Skillset

IA Design, UI Design, User Testing

Process

Heuristic Evaluation

Perform heuristic evaluation of existing application by comparing current state to Nielsen Norman Group's 10 Usability Heuristics

Personas

Full panel suite of interviews with users and stakeholders.

7 unique personas identified.

Journey Maps

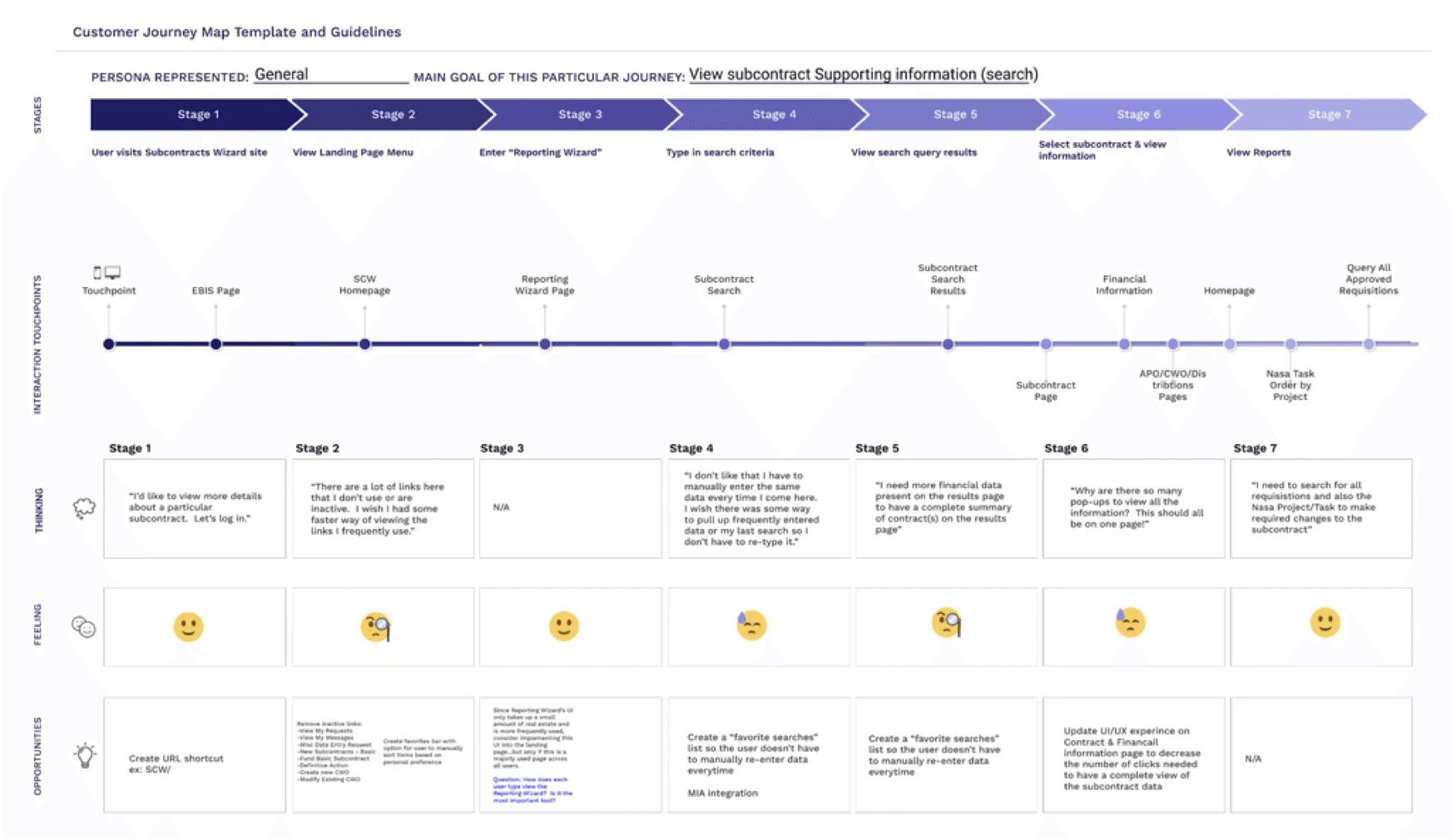

Perform journey maps for the 7 identified personas to identify and isolate pain points. 14 unique pain points found.

Architecture Mapping

Evaluate current information architecture map, eliminate erroneous layers and reorganize to optimize page layers

LoFi Mockups

Create low fidelity mockups in an iterative process to confirm ideal page/site layout

HiFi Mockups

Create high fidelity mockups to confirm more intricate UI details

Testing

Conduct User Acceptance Testing (UAT), Heat Map Testing, and A/B Testing with various volunteer users on full-scale prototypes.

Conduct accessibility scans across all layers of the UI to ensure the app is in compliance with WCAG 2.1 AA Guidelines.​

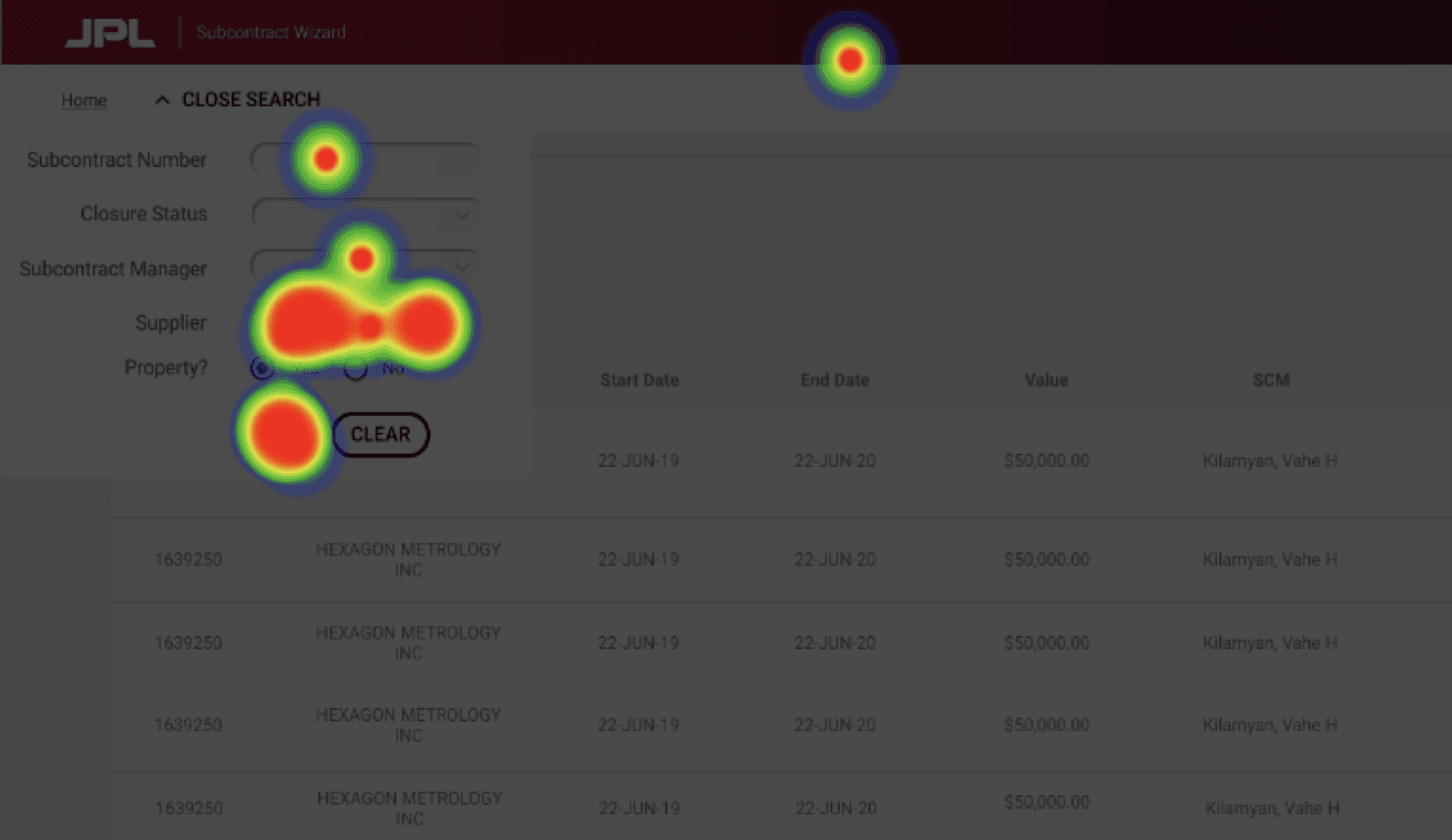

Heat map tests were distributed as part of the A/B testing to measure the effectiveness of two different designs for the search component.

Highlights

Information Architecture streamlined from 5 layers to 3

Seamless user transition due to intuitive UI

Revamped information architecture so that the data is streamlined and easily obtainable

Eliminated all erroneous pages/links, down from 5 layers to 3

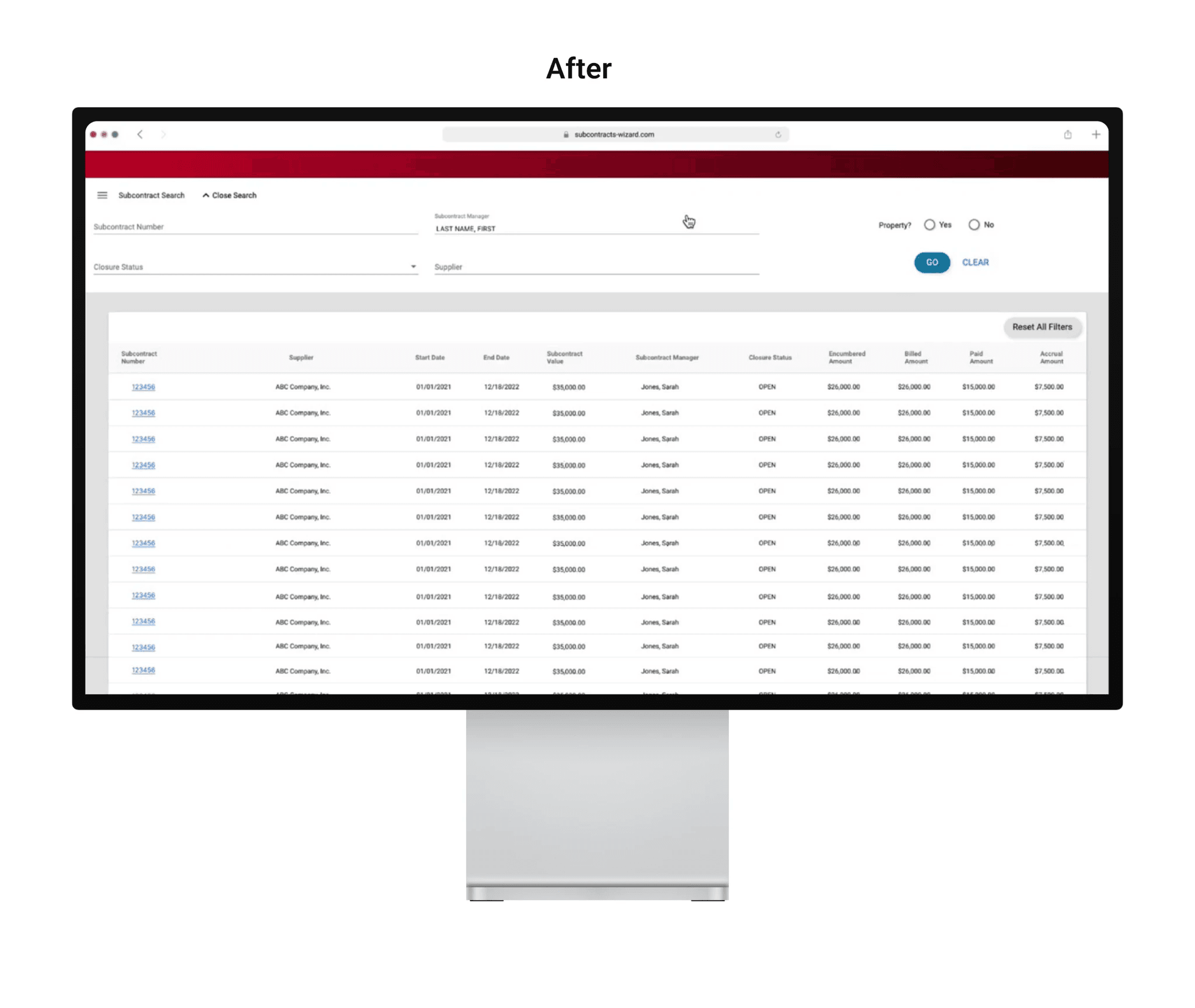

Upgraded and streamlined UI to be clean, concise, and accessible

End users report an overall efficiency improvement of at least 30% and high satisfaction

Conclusion

This technical upgrade offered several challenges: cleaning up the backend, improving response time, and creating a UI that isn't a headache, respectively. Meanwhile, we have users who have been used to the old design for the past 20+ years, so we had to be mindful that the redesign should encourage healthy familiarity so as not to alienate our user base.

As a result, we came up with a new and improved web application that addressed all core concerns while maintaining enough architectural familiarity for the existing users.
